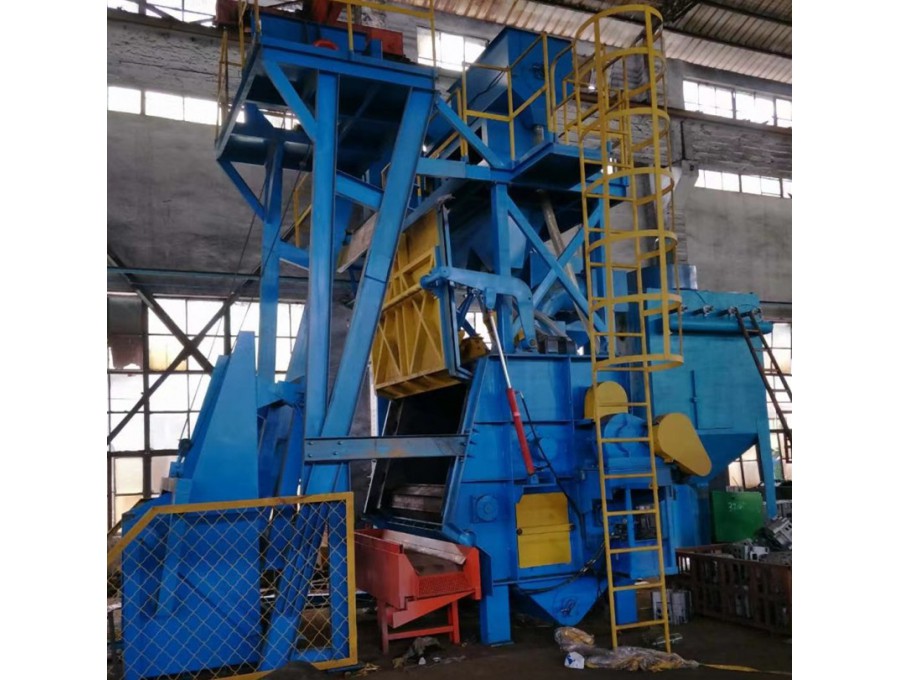

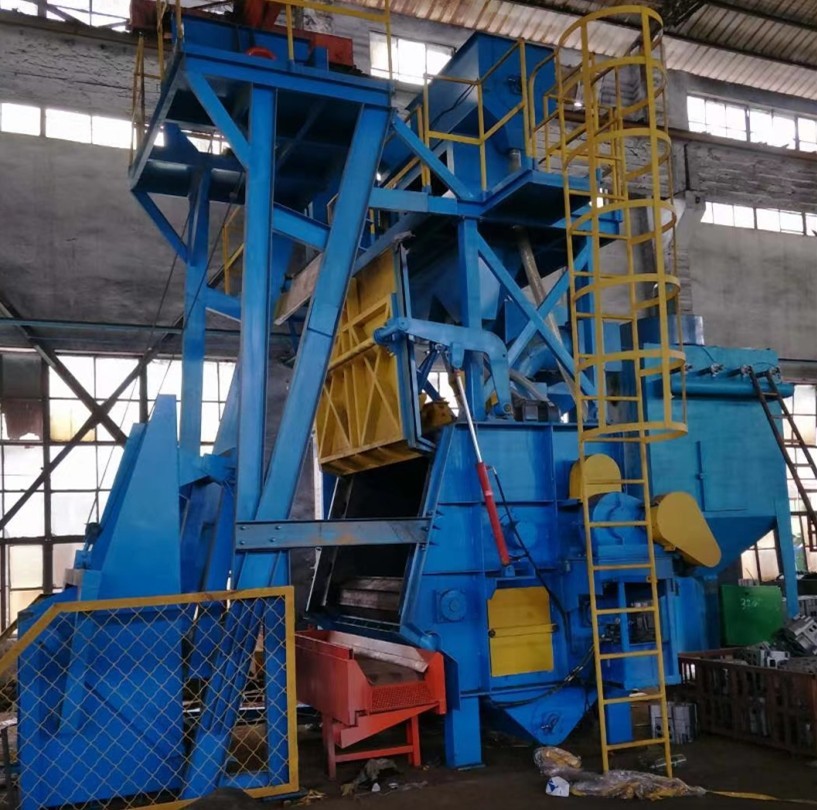

28GN Drum Shot Blasting Machine

28GN Drum Shot Blasting Machine

28GN Drum Shot Blasting Machine

1.1

Load capacity

0.79m3

Size(diameter*length)

Φ1250*1800mm

1.2

Max load quantity

3500 kg/ drum

1.3

Max single workpieces weight

500kg

1.4

Unloading height

1554mm

1.5

Loading door cylinder

2pcs

Hydraulic station power

3kw

1.6

Total air volume

8000m3/h

Blasting chamber

6000m3/h

Separator

2000m3/h

1.7

Compress air


Pressure

0.5-0.6Mpa

1.8

Projectile storage amount

3600kg

1.9

Outline size(L*W*H)

4597*3262*5709 mm

1.10

Loading door

Motor power

2.2 kw

Speed

940 r/min

Model

YEJ112M-6(B3)

Run speed

8.5 m/min

1.11

Blasting wheel

Model

Q037

Speed

2960 r/min

Max blasting amount

300 kg/min

Motor

Power

22 kw*2

Speed

1460 r/min

Model

Y180L-4

1.12

Drum device

Transmission speed

6.3 r/min(Main spindle)

Motor

Power

4 kw

1.13

Lift elevator

Lift speed

1.28 m/s

Motor

Power

7.5 kw

Speed

1440 r/min

Model

XWD7.5-6-1/29

1.14

Separator

Separation wind speed

4-5m/s

Separating amount

45T/h

1.15

Bottom projectile screw conveyor

Speed

56r/min

Motor

Power

3kw

Speed

1460 r/min

Model

XWD3-4-1/35

1.16

Loader

Motor

Power

7.5 kw

Loading capacity

5T

Lifting speed

8m/min

1.17

Dust removel system

Type

Pulse bag type

Bag number

96pcs

Fan power

11kw

Air volume

12000m3/h

1.18

Total power


80KW
