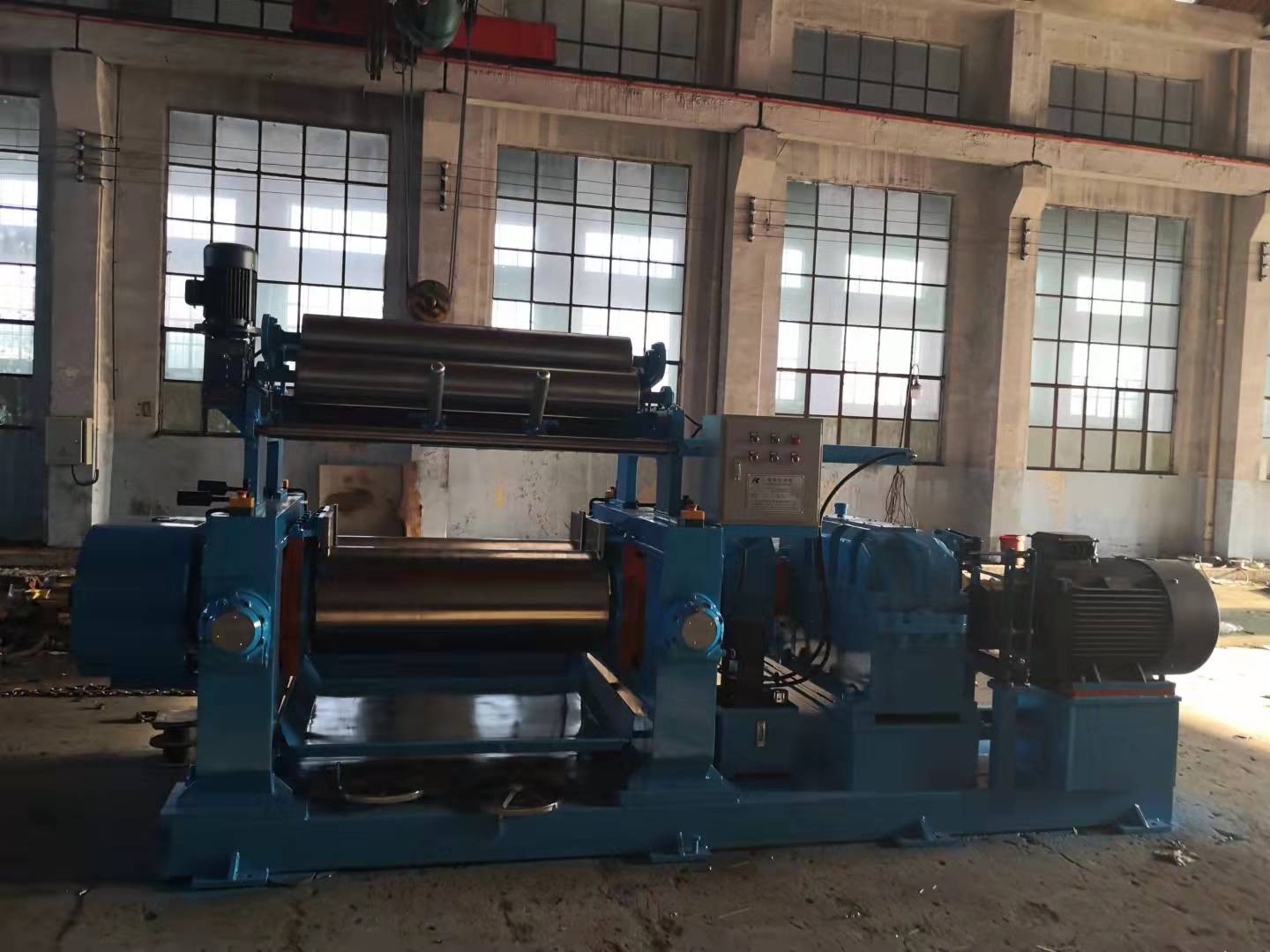

Rubber Mixing Roller Open Mixing Mill With 2 Rollers
Detailed Product Description
Rubber Mixing machine
1.easy to operate and maintain
2.the rolller is durable serive
3.movement be made by manual or electric
Working principle
1.Its main working parts is two different parts of the rotating drill hollow cylinder or rollers. 2.The device in the side of the operator, can be called the front roll and operated by manual or electricity in the level movement.
3.In order to adjust and adapt to the requirements from roller, After it is fixed, roller can do movement.
4.Two rollers, the same size commonly with different speeds, rubber or relative rotation with rubber roller rotation is involved in two roller clearance, intense and shearing action or mixed refine refining.
Technical parameters
Model | XK-160 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | |
Working diameter rolle(mm) | φ160 | φ250 | φ300 | φ360 | φ400 | φ450 | φ560/510 | |
The length of roller work(mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1530 | |
Front roller speed(m/min) | 8.95 | 15.3 | 15.1 | 16.25 | 18.65 | 24.32 | 27.72 | |
Before and after the roller speed ratio(m/min) | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 | |
Roll away the largest(mm) | 4.5 | 8 | 8 | 10 | 10 | 15 | 20 | |
A feeding quantity(kg) | 1-2 | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 | |
Driving motor power | 5.5 | 18.5 | 22 | 30 | 37 | 55 | 90 | |
outline demension | 1080 | 1226 | 3120 | 3780 | 4250 | 4350 | 5000 | 5845 |
796 | 830 | 1322 | 1850 | 1850 | 1850 | 19000 | 2284 | |
1415 | 1295 | 1500 | 1740 | 1770 | 1785 | 1870 | 1978 | |
weight(kg) | 1280 | 4000 | 5200 | 6500 | 7600 | 11400 | 23000 | |
